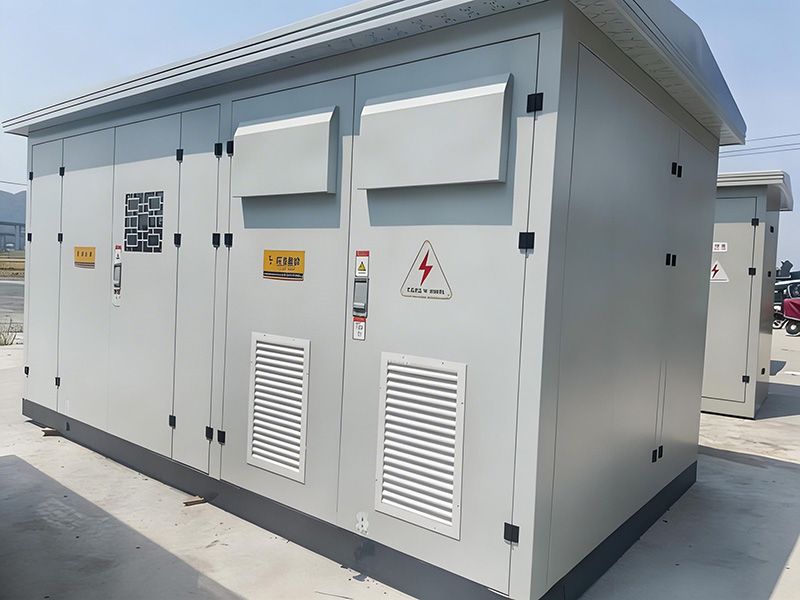

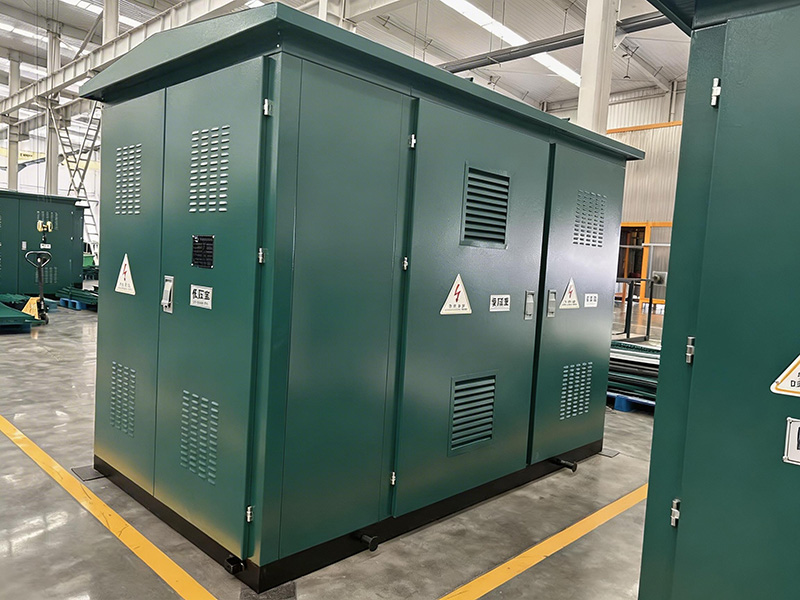

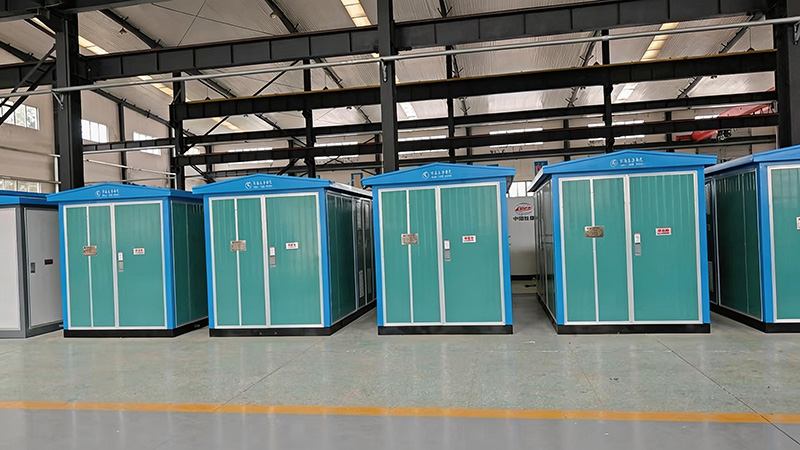

Multi-Functional Intelligent Prefabricated Substation

Product Introduction

• The YB Series Multi-Functional Intelligent Prefabricated Substation is an integrated smart distribution device developed by our company according to market demand and relevant industry standards. This product integrates 10 kV high-voltage switchgear (with electric remote transmission and remote control capabilities), power transformers or special transformers, low-voltage intelligent switchgear, intelligent reactive power compensation systems, anti-theft metering systems, and emergency power supply systems into a complete distribution system according to user requirements.
• The substation supports both local operation and remote control, enabling intelligent management such as remote control, measurement, signaling, and regulation, while also providing uninterrupted power supply. It is primarily used for receiving, distributing, and metering electrical energy in power distribution systems.
• This product incorporates our company’s proprietary key technologies, optimizing the integration of three-phase emergency power systems, anti-theft metering boxes, multifunction intelligent meters, intelligent circuit breakers, static reactive power compensators, and energy-saving transformers. In the event of a substation fault, it provides emergency power for critical loads such as fire protection systems, hospitals, and elevators.
• Through the intelligent control system, the substation achieves “Four Remote” management (remote measurement, signaling, control, and regulation), as well as remote monitoring, early warning, data collection, and energy usage analysis, further enhancing automation and intelligence levels.
• The Multi-Functional Intelligent Prefabricated Substation not only meets the trends of land-saving, energy-saving, compact, small-sized, and unmanned operation, but also adapts to modern power systems’ requirements for informationization, networking, and intelligence, making it highly suitable for various applications.

Application Scenarios

• Urban grid reconstruction projects
• Residential communities and high-rise buildings
• Industrial and mining enterprises
• Hotels, shopping malls, and commercial centers
• Airports, railways, and ports
• Oilfields and energy bases
• Highway power supply systems
• Temporary power supply facilities and other indoor/outdoor installations

Normal Operating Conditions

• Altitude: ≤ 1000 m
• Ambient Temperature: -25°C to +40°C
• Relative Humidity: ≤ 90% (at 25°C)
• Maximum Wind Speed: ≤ 35 m/s
• Seismic Conditions: Horizontal acceleration ≤ 0.4 m/s², Vertical acceleration ≤ 0.2 m/s²
• Installation Environment: Free from fire and explosion hazards, severe pollution, corrosive gases, and intense vibration; installation tilt ≤ 3°
• Note: Transformers can be customized to operate under special service conditions according to user requirements.
