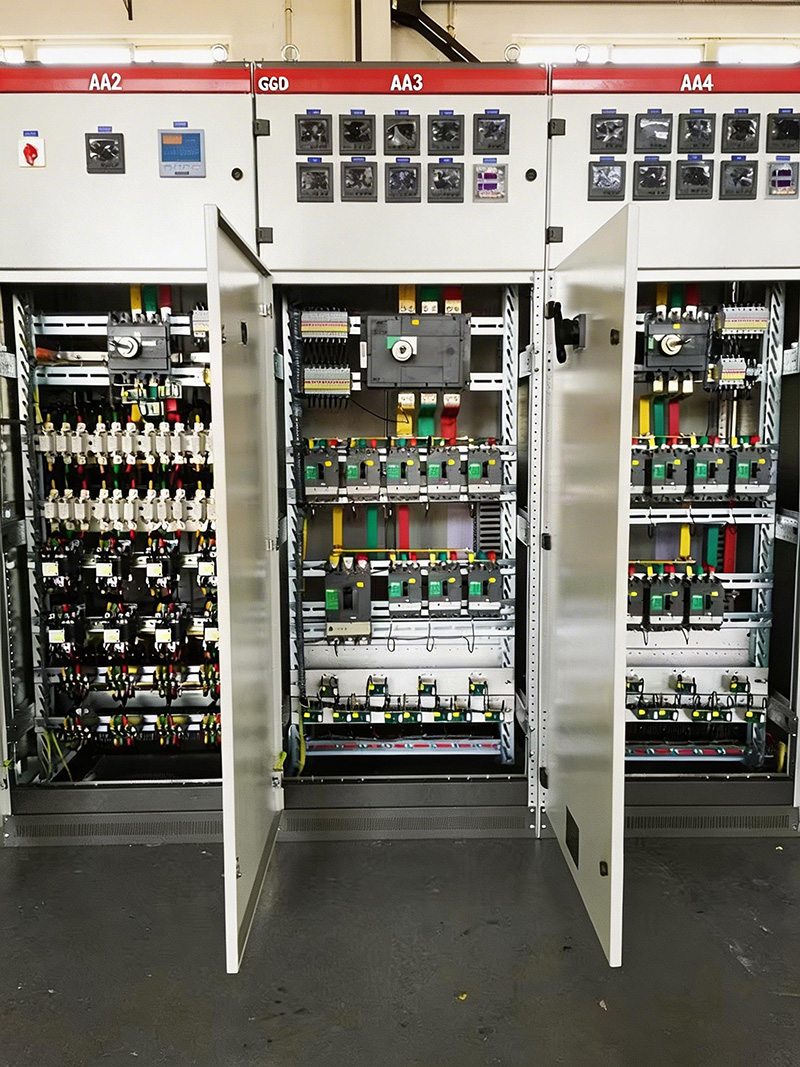

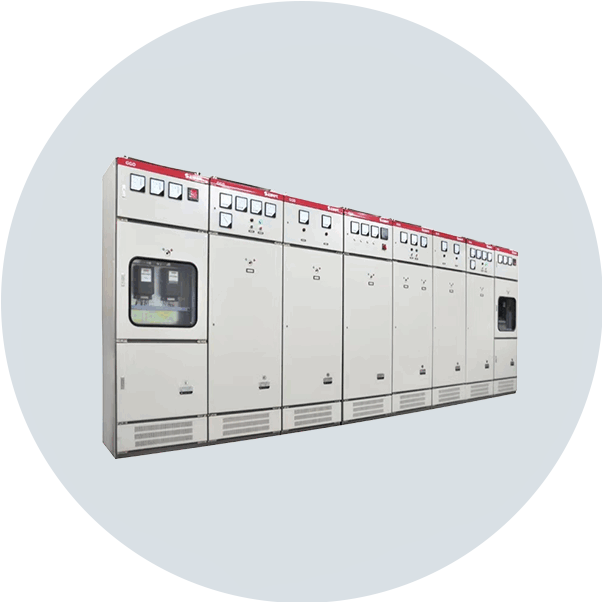

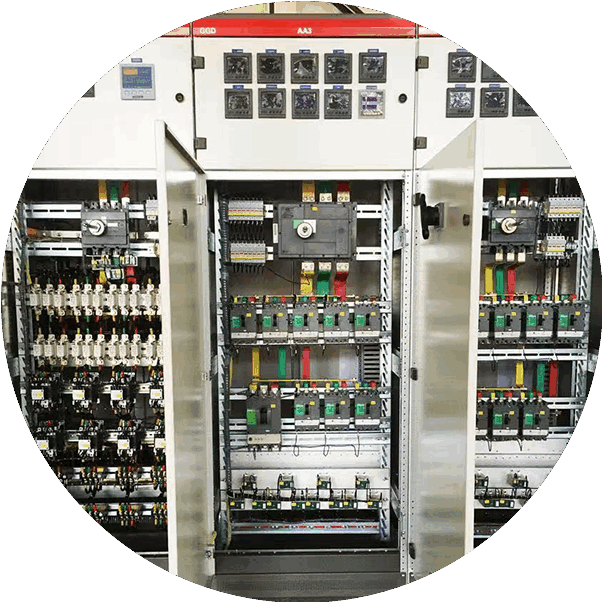

GGD Fixed-Type AC Low-Voltage Distribution Cabinet

Product Introduction

• The GGD fixed-type AC low-voltage distribution cabinet is suitable for three-phase AC 50Hz systems with a rated operating voltage of 380V and a rated current up to 3150A. It is widely used in power plants, substations, industrial and mining enterprises, and other power user sites, primarily for energy conversion, distribution, and control in power, lighting, and distribution systems.
• This product features high breaking capacity, excellent electrodynamic and thermal stability, flexible electrical configurations, easy combination, strong practicality, innovative structure, and high protection levels, making it an ideal upgrade for conventional low-voltage switchgear.

Application Scenarios

• Ambient Temperature: Max +40°C, Min -5°C; 24-hour average not exceeding +35°C.
• Installation Location: Indoor, altitude not exceeding 2000 meters.
• Relative Humidity: ≤50% at +40°C; higher humidity allowed at lower temperatures (e.g., 90% at +20°C), with occasional condensation considered.
• Installation Inclination: ≤5°.
• Environmental Requirements: Free of severe vibrations, shocks, corrosive or explosive gases, and conductive dust.
• Special Requirements: Custom solutions available in consultation with the manufacturer.

Structural Features

• Cabinet Design: Standardized universal cabinet frame assembled from 8MF cold-bent steel, with components and accessories supplied by the manufacturer for high precision and quality.
• Modular Design: Components are modular with 20-module mounting holes, allowing high versatility, efficient assembly, and mass production.
• Optimized Cooling: Upper and lower ventilation slots form a natural bottom-to-top airflow for effective heat dissipation.
• Aesthetic and Practical: Designed using the golden ratio, offering a modern, elegant, and industrial look.
• Door Design: Hinged doors with rubber sealing strips prevent direct collision and enhance protection.
• Grounding Protection: Instrument doors connected via multi-strand copper wires; cabinet components fixed with knurled screws to form a complete grounding circuit.
• Surface Treatment: Polyester baking finish or powder coating with strong adhesion, good texture, and matte finish to reduce glare and improve operator comfort.
• Installation and Transport: Removable top cover for busbar installation and adjustment; corner lifting rings for convenient handling and transport.
• The GGD fixed-type AC low-voltage distribution cabinet combines safety, reliable performance, reasonable structure, flexible configuration, and ease of installation and maintenance, making it an ideal solution for modern industrial and commercial low-voltage distribution systems.

Product Parameter
